Power cable
The linear stage is equipped with 1 meter cable with M23 standard speedtec connector at the cable end.

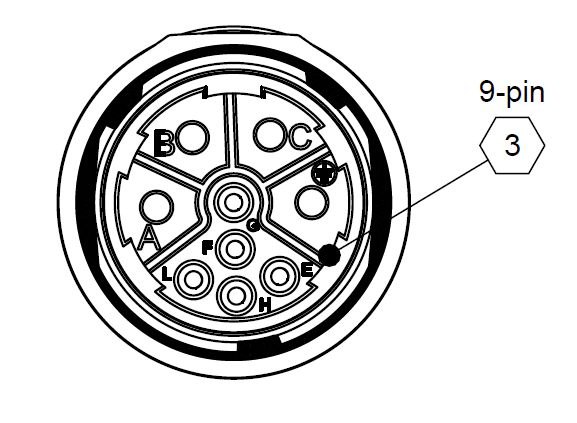

Pinout - Power connector BKUA145NN00420200400 (Serie 923 - 9 poles)
| PIN | Signal |
| A | U phase |
| B | V phase |
| C | W phase |
| D/PE | Protection Earth |
| F | Thermal switch+ |
| G | Thermal switch- |
| L | not connected |
| H | not connected |
| CASE | Shield |
