B&R Servo Drive

ACOPOS MULTI

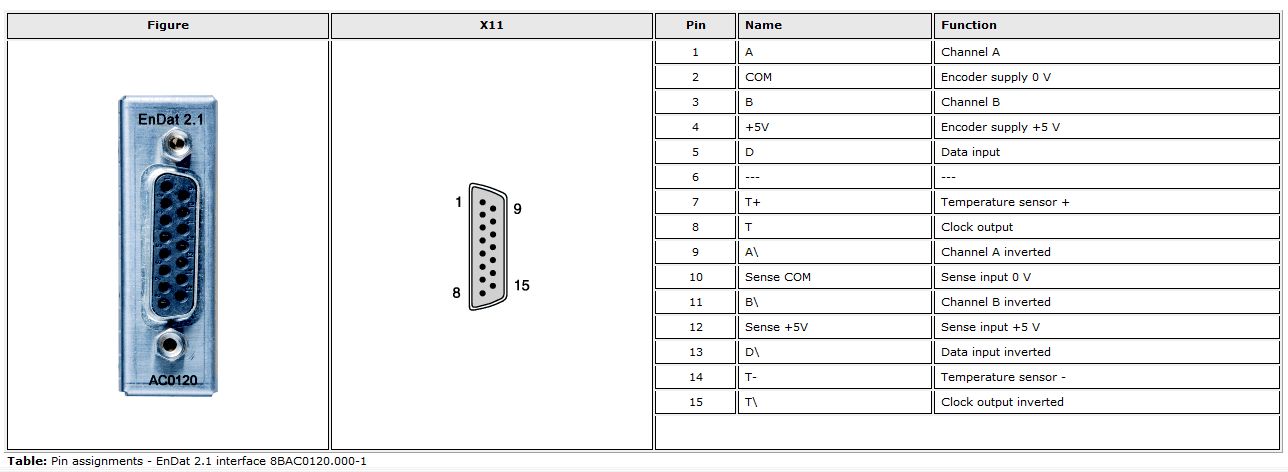

Plug-in Module: ENDAT 8BAC0120.000-1


Plug-in Module: SIN/COS 8BAC0124.000-1


Acopos

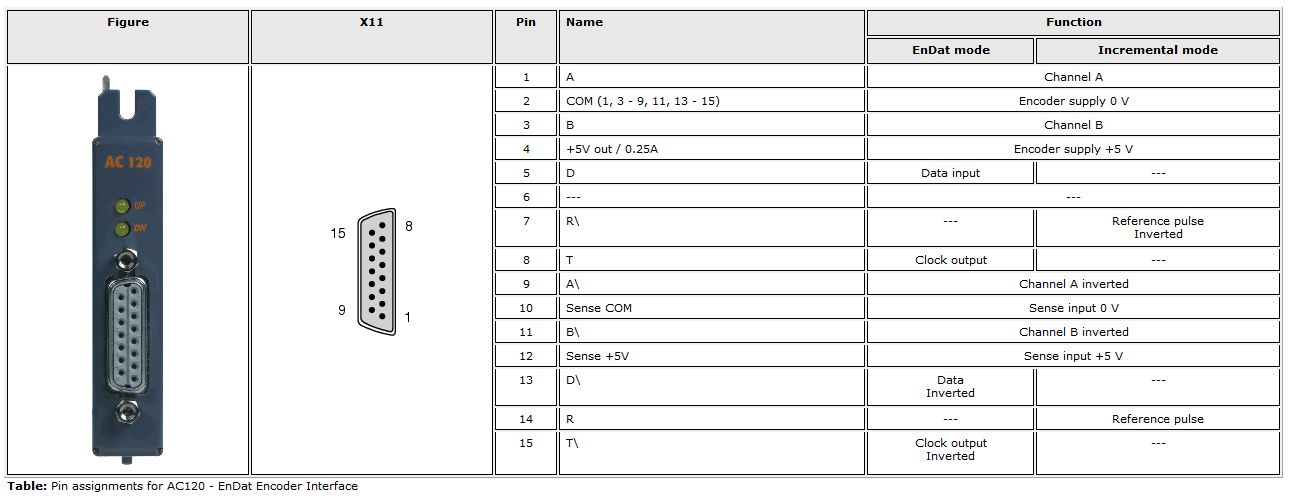

Plug-in Module:8AC120.60-1


Acopos P3

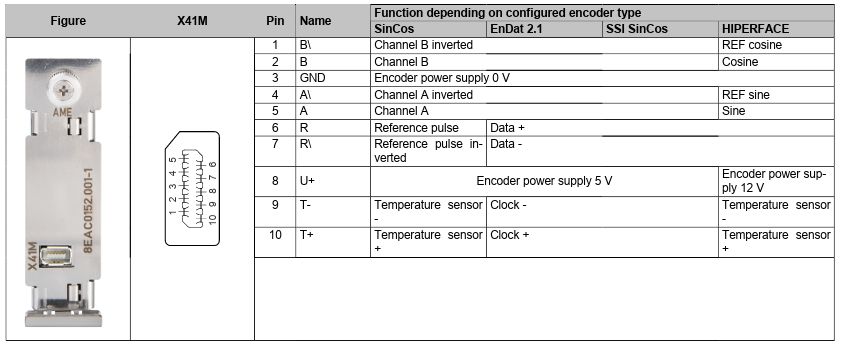

Plug-in Module: 8EAC0152.001-1


Encoder configuration

Incremental encoder (ncINC) with ParID 109 = 16384 (Intrpolation factor)

Motor phases

V and W phase inverted.
