Encoder Pinout

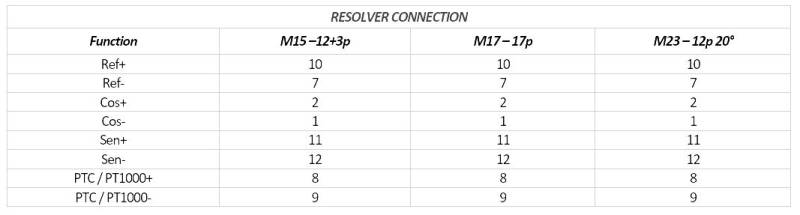

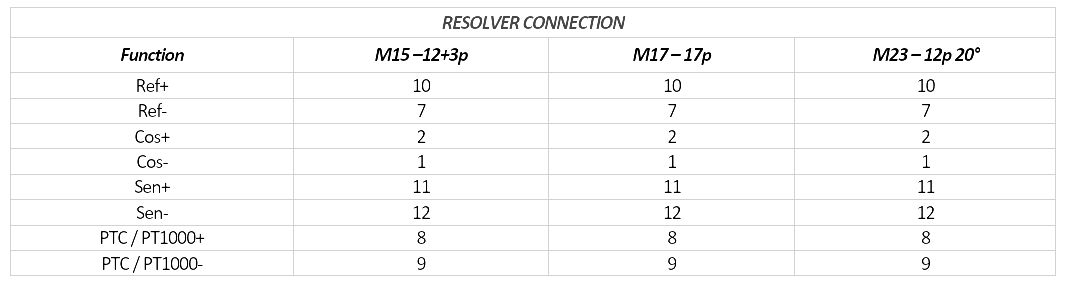

Resolver Feedback

Encoder type: Resolver 2p 7V 10KHz

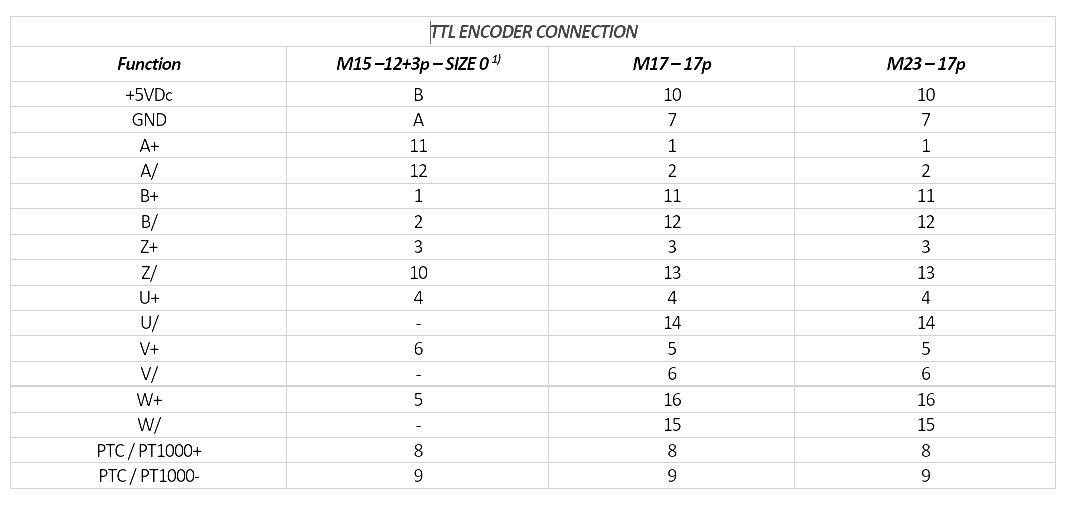

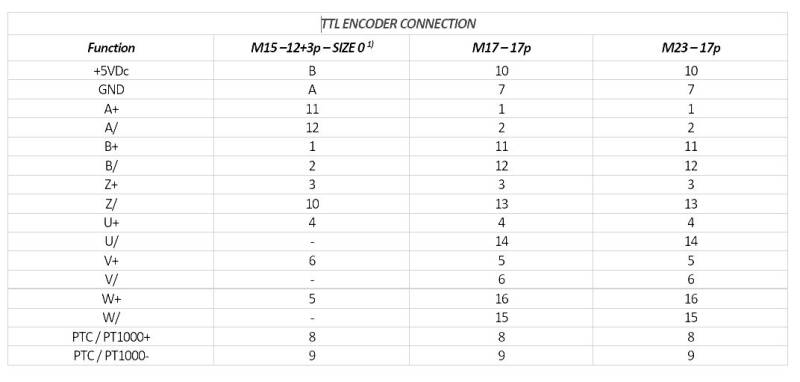

TTL Encoder

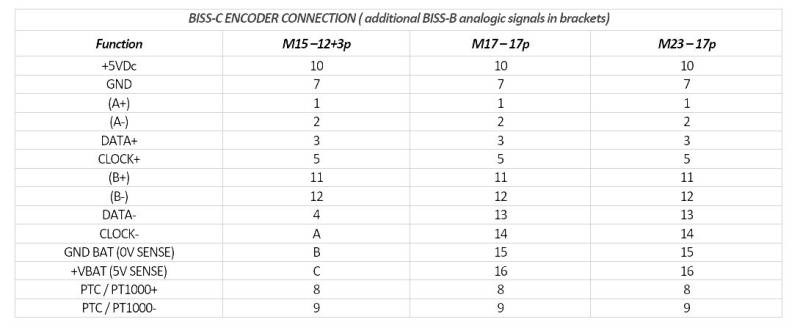

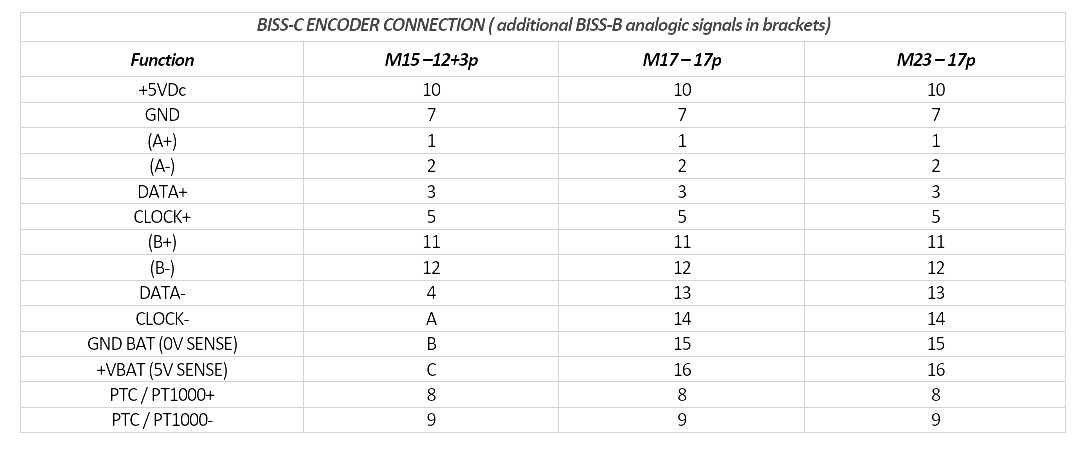

BISS-C Encoder

Encoder types:

ELM35 : https://www.sick.com/at/de/catalog/produkte/motion-control-sensoren/motor-feedback-systeme/elselm35/c/g584054

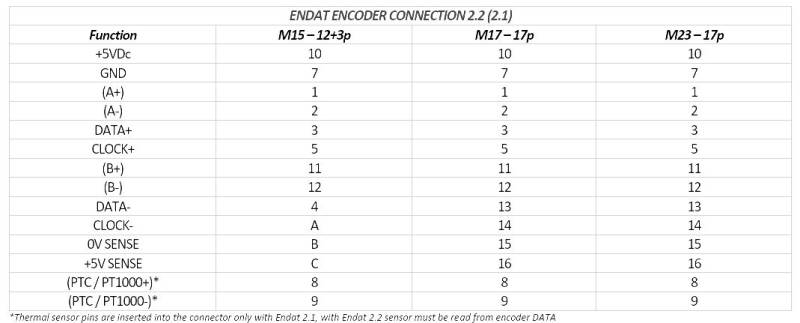

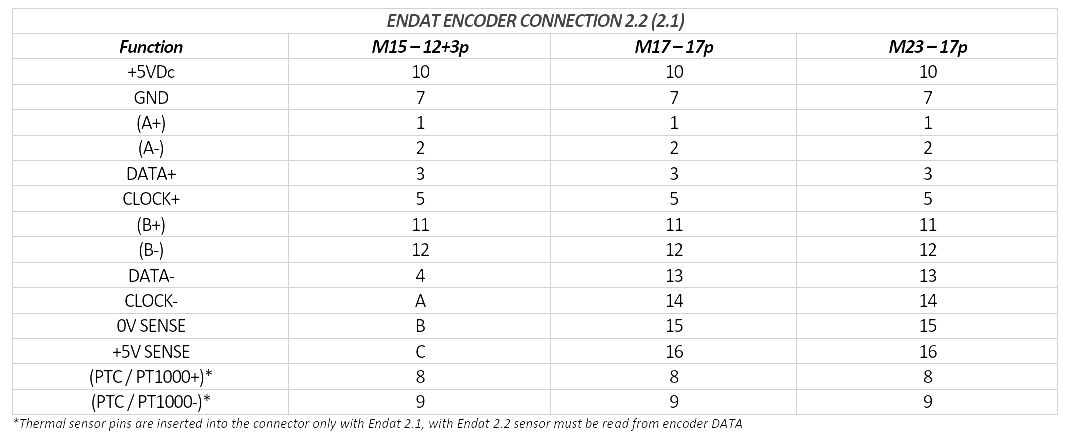

Endat Encoder

Encoder types:

EQI1131 Endat 2.2: https://www.heidenhain.com/service-support/infobase/1164811-05
EQI1130 Endat 2.1: https://www.heidenhain.com/service-support/infobase/1164813-04

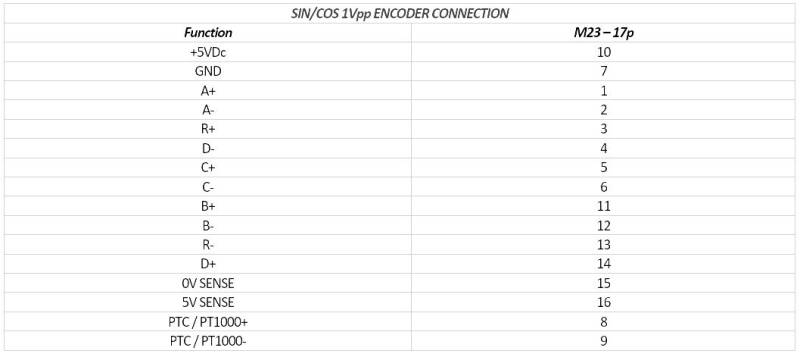

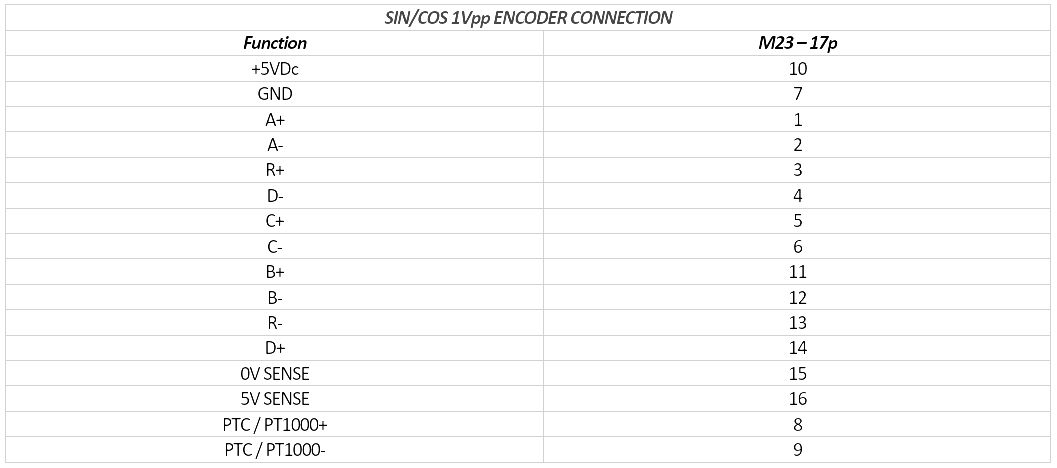

SIN/COS 1Vpp Encoder

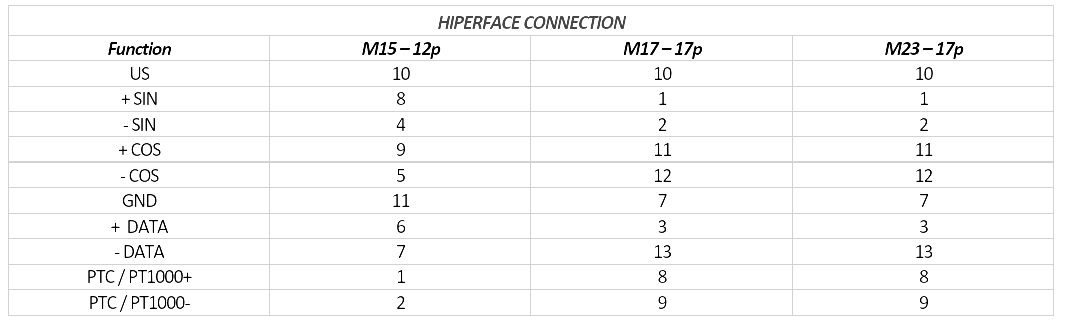

Hiperface Encoder

Encoder types:

SEL37 : https://www.sick.com/at/de/catalog/produkte/motion-control-sensoren/motor-feedback-systeme/seksel/c/g575659
SKM36: https://www.sick.com/at/de/catalog/produkte/motion-control-sensoren/motor-feedback-systeme/sksskm36/c/g215684
SEM70: https://www.sick.com/at/de/catalog/produkte/motion-control-sensoren/motor-feedback-systeme/sessem/sem70-hn025ak22/p/p512349?tab=detail

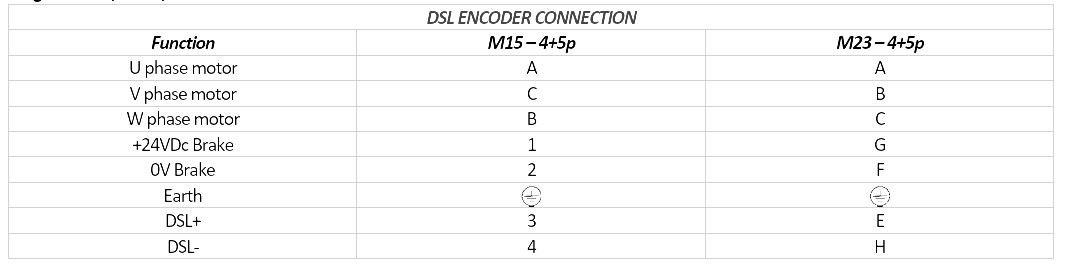

DSL Encoder

Encoder types:

EKM36 : https://www.sick.com/ag/de/catalog/produkte/safety/sichere-motor-feedback-systeme/eksekm36-s/ekm36-2kf0b020a/p/p478044
EKS36: https://www.sick.com/ag/de/catalog/produkte/motion-control-sensoren/motor-feedback-systeme/eksekm36/eks36-0kf0b018a/p/p477845
