Installation
Slider distance for parallel drive mounting
When the application needs tandem parallel configuration of the integrated drive linear motor, the two or more actuators must be mounted guaranteeing the safety distance L3 to avoid the interaction between the magnetic sliders.
| MOTOR MODEL | NO INTERACTION | MEDIUM INTERACTION | STRONG INTERACTION |
| NLi080 | > 35 mm | > 15 mm to 35 mm | < 15 mm |
| NLi120 | > 65 mm | > 45 mm to 65 mm | < 45 mm |
NL040Q Fixing points
NL040X Fixing points
NL080Q Fixing points
NL080X Fixing points
NL120Q Fixing points
NL120X Fixing points

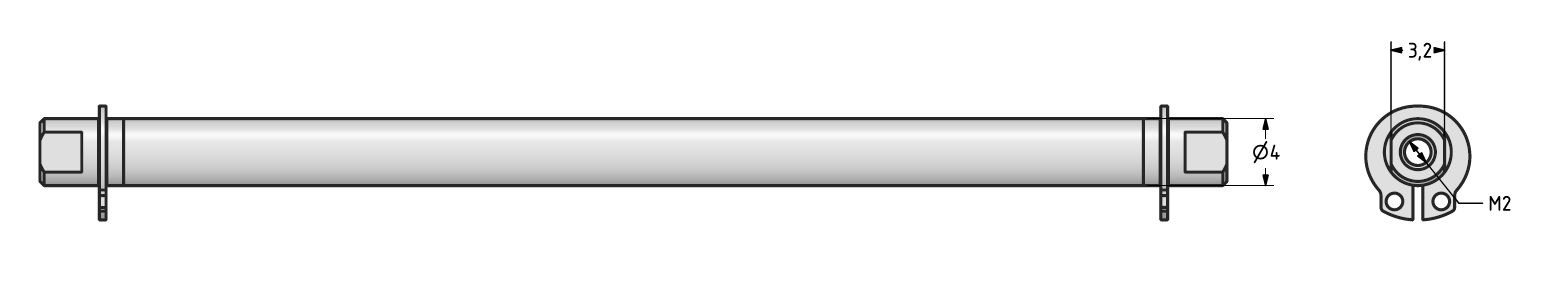

NL040Q/X slider fixing point
Slider has M2 threaded hole at each slider ends.
NL080Q/X slider fixing point
Slider has M4 threaded hole at each slider ends.
NL120QX slider fixing point
Slider has M4 threaded hole at each slider ends.
